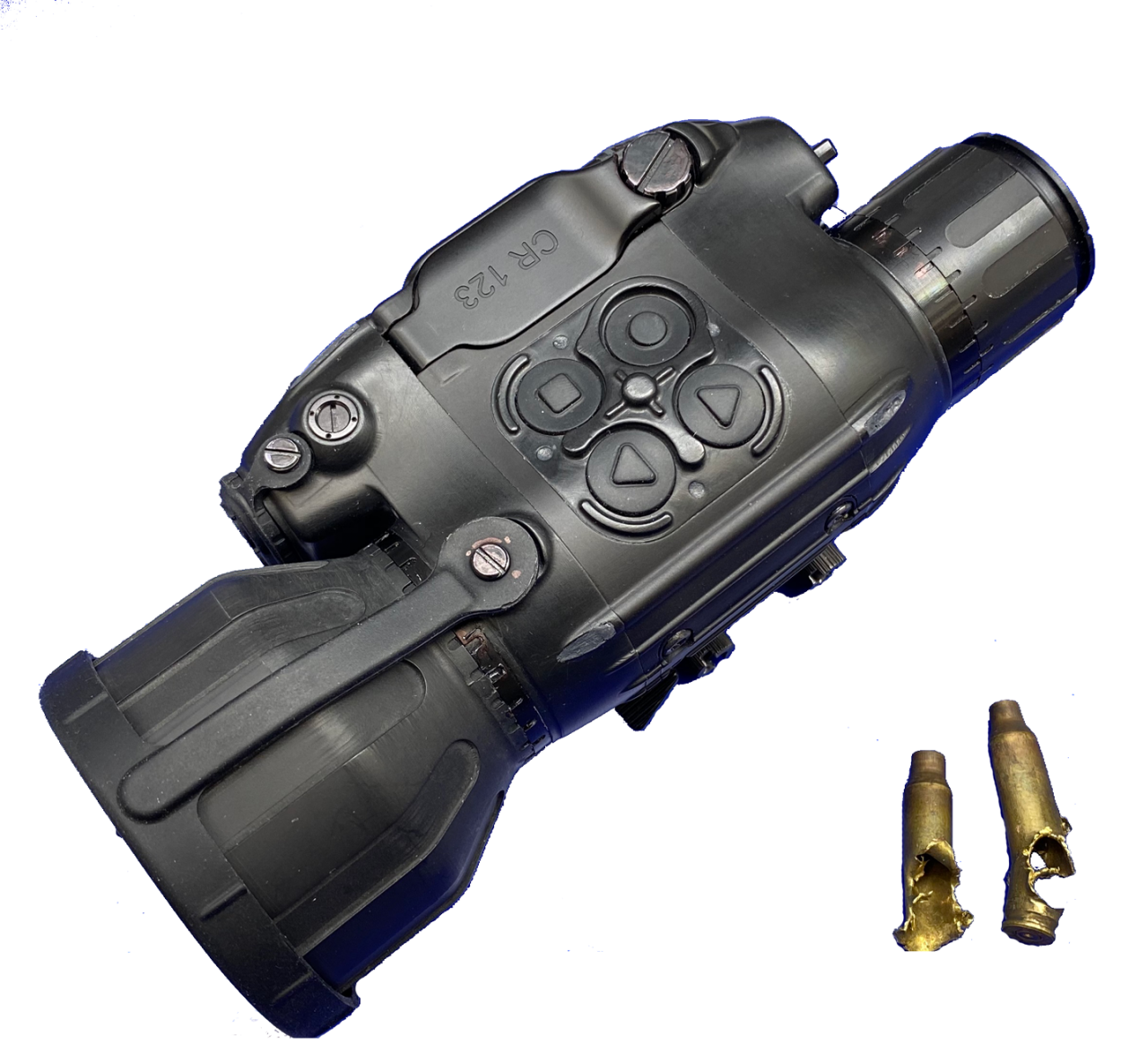

Multi-Mission Uncooled Thermal Sight

The VooDoo-M is the next generation of thermal imaging system. We’ve kept what you require, improved what you asked for, and added what you’ve always desired. Feature rich, yet easy to use all under 18 oz.


  • Sharpest image on the market for observation and search & rescue operations
  • Weapons mountable with QD/Flip-to-Side Wilcox Mount
  • Handheld Long Range Thermal for Reconnaissance


Medium/Long Range Monocular


We have created the worlds most powerfull thermal optic allowing for todays objectives with tomorrows mission ready capabilities



VooDoo-M provides accuracy to <0.5 MOA at 100 yards.


VooDoo-M is built tough to withstand any small arms calibers. We tested without failure or bullet impact shift, 5000 rounds of 7.62 x 51 NATO through the SCAR-17 Heavy.

Lasers Optional

VooDoo-M is availalbe with and without a Eye Safe Laser Module consisting of Visable (Red or Green) & NIR.


VooDoo-M has advanced hardware features to enable integration of Artifical Intelligence and Machine Learning that no other optic of its size, weight and power offers on the world market.


VooDoo-M also has the ability as the first thermal optic to offer such power and connectivity for our modern warfighters. Load mission specific profiles, integrated communications via secured links and friendly vs enemy indicators thus reducing Blue-on-Blue Safety issues.


  • SENSOR                                                                       640 X 480 MICRO BOLOMETER
  • PITCH                                                                           12 MICRON
  • SENSITIVITY                                                                < 50 mK
  • DIGITAL ZOOM                                                           0.5x / 1x / 2x / 4x
  • NUC                                                                              CUSTOMIZED SOLUTION
  • MOA                                                                             < 0.5
  • DAY TIME OPTIC COMPATIBILITY                            UP to 16x
  • RETICLE TYPES                                                            STANDARD or CUSTOM
  • POLARITY MODES                                                      WHITE HOT / BLACK HOT / WHITE EDGE DETECT / BLACK EDGE DETECT / DYNAMIC
  • DIGITAL MAGNETIC COMPASS                                 YES
  • OLED TYPE                                                                   YES
  • RESOLUTION                                                                640 X 480
  • REFRESH RATE                                                             60 Hz
  • EYE RELIEF                                                                   23mm
  • ADJUSTABLE DIOPTER                                                +/- 2
  • STARTUP TIME                                                             < 3 SEC
  • BATTERY TYPE                                                             2 X CR123 (OPTIONAL REMOTE RAIL BATTERY PACK or AC/DC CABLE)
  • BATTERY RUNTIME                                                      < 6 HRS
  • WEIGHT                                                                        < 18 oz
  • ENVIRONMENTAL                                                       MIL-STD-810G
  • MOUNT                                                                        WILCOX SHOE WITH QD/FLIP-TO-SIDE MOUNT

Data Sheet

Click Here to Request
